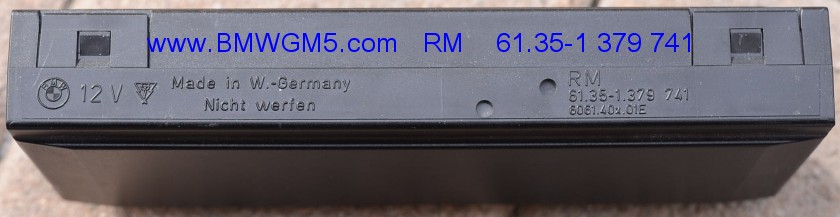

BMW RM Module P/N 61.35-1.379 741 Tyco Siemens V23133-A1001-C133

BMW RM Module 61.35-1 379 741
Used in the (E32) 1986-1994 7-series and (E34) 1987-1996 5-series

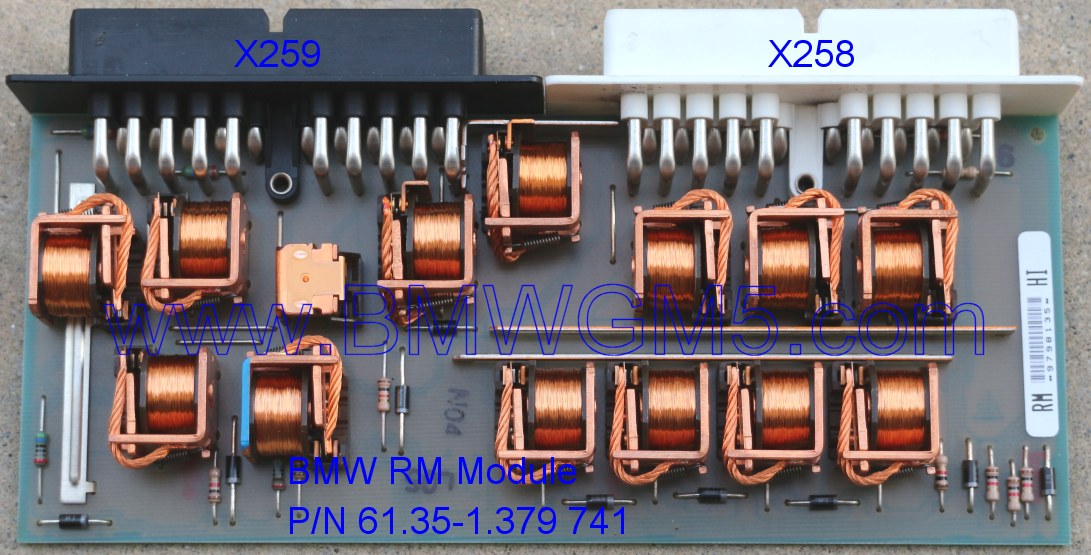

The RM module part number 61.35-1.379 741 was used in the E32 7-series amd E34 5-series and possibly other cars. This module contains 14 relays for various functions in the car such as power windows, trunk release, wipers, interior lights, door locks and door lock heater. 10x V23133-A1001-C133, 1x V23072-C1061-A308, 1x V23133-A3001-C132 and 2x V23071-A1011-X007. The RM module has no smarts in it at all and everything is controlled by the GM module.

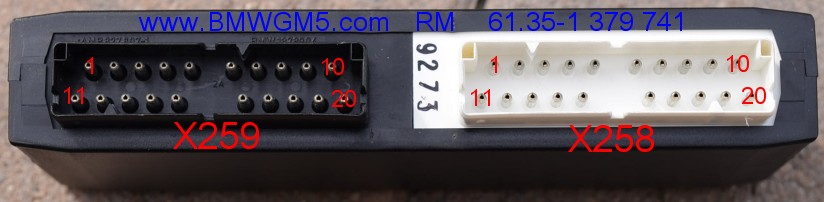

X258	White Connector
1	Door Lock Common (Blue)
2	Relay Coil (X258-1)
3	Relay Coil (X258-13)
4	Relay Coil (X258-14)
5	Power Out to GM
6
7
8
9
10	Ground
11	Power In
12
13	Door Lock (White)
14	Door Lock (Black)
15	Power In (Fuse 30)
16	Door Lock Heater
17	Relay Coil (X258-16)
18	Wipers 1
19	Wipers 2
20	Power In

X259	Black Connector
1	Relay Coil (X259-11)
2	Relay Coil (X259-12)
3	Relay Coil (X259-13)
4	Relay Coil (X259-14)
5	Relay Coil (X259-15)
6	Relay Coil (X259-16)
7	Relay Coil (X259-17)
8	Sense for power windows (common)
9
10
11	Right Rear Window
12	Right Windows Common
13	Output
14	Output - Sunroof
15	Output - Power Window
16	Output - Power Window/Sunroof
17	Output - Power Window
18	Sense for power windows
19
20	Ground
